- Mobile waste handling units, industrial, municipal, wet and dry
- Pneumatic conveying (fly ash, chemicals, pharmaceuticals)
- Central vacuum systems (packaging, envelope manufacturing)
- De-aeration (chemical, plastics, brick and ceramics)
- Hydro excavation

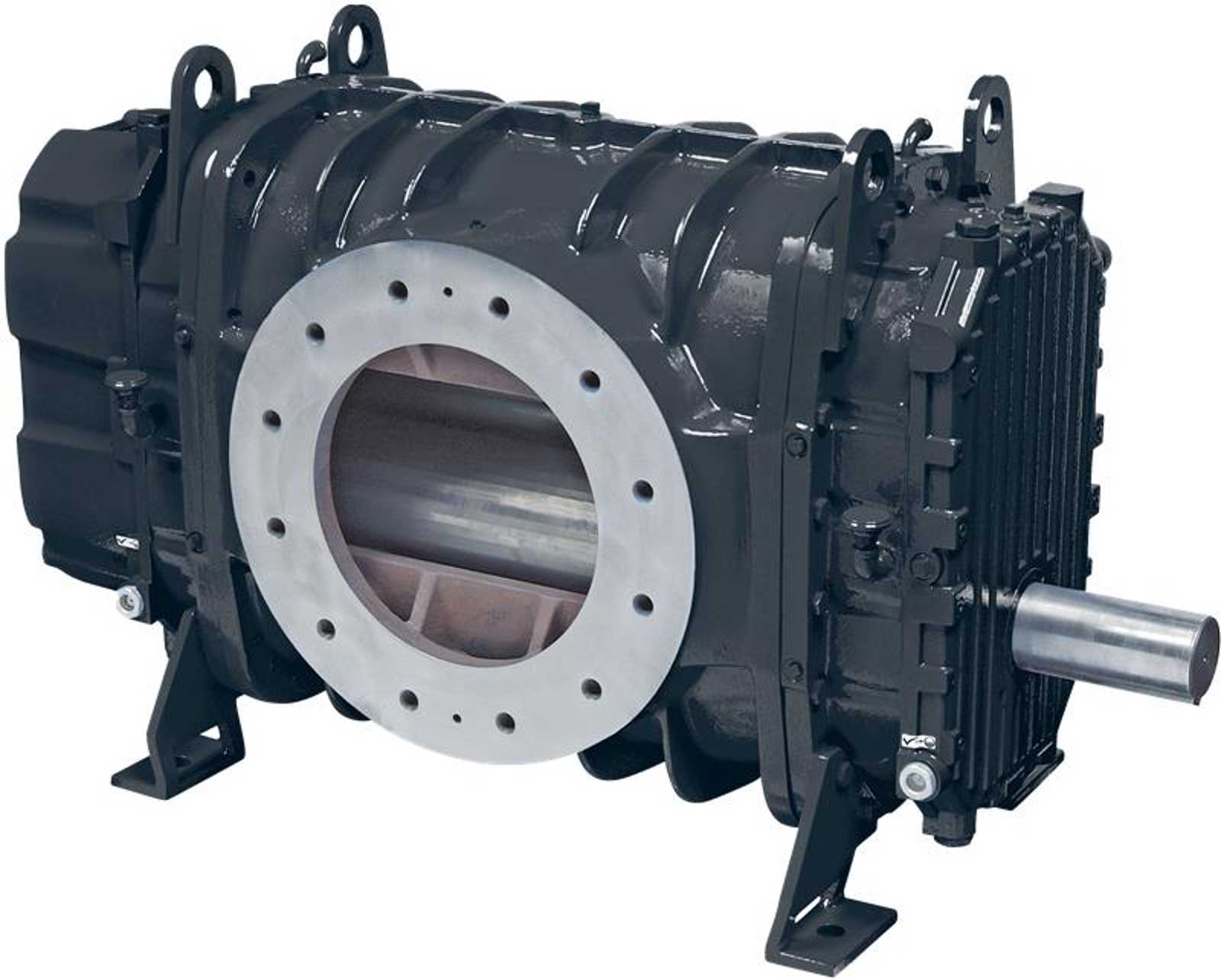

The TS 56 two-lobe medium vacuum blower offer a wide range of design features and incorporate energy efficiency improvements, complying with the strictest operational requirements of a variety of applications. This blower is ideally suited for the rigorous demand of the vacuum truck market. Achieving 18” Hg of continuous duty vacuum and road-ready with intrinsic washdown protection and our tri-seal shaft-sealing system to prevent leaks.
- Tri-seal shaft sealing system
- Centrally timed
- Robust road tested design
- Rugged bulls eye sight glasses
- Washdown protection package
- No cumbersome heat shield required
Bottom Shaft Clockwise rotation
Left Hand Shaft Clockwise rotation
Top Shaft Clockwise rotation
Right Hand Shaft Clockwise rotation
Bottom Shaft Counter Clockwise rotation
Left Hand Rotation Counter Clockwise rotation
Top Shaft Counter Clockwise rotation
Right Hand Shaft Counter Clockwise rotation
Model name | Free air displacement at max. speed( cfm) | Vacuum at maximum speed | Weight(lbs.) |
TS 56 | 5000 | 60% / 18 " Hg | 1456 |
