Silentflow Package For Positive Displacement Blower

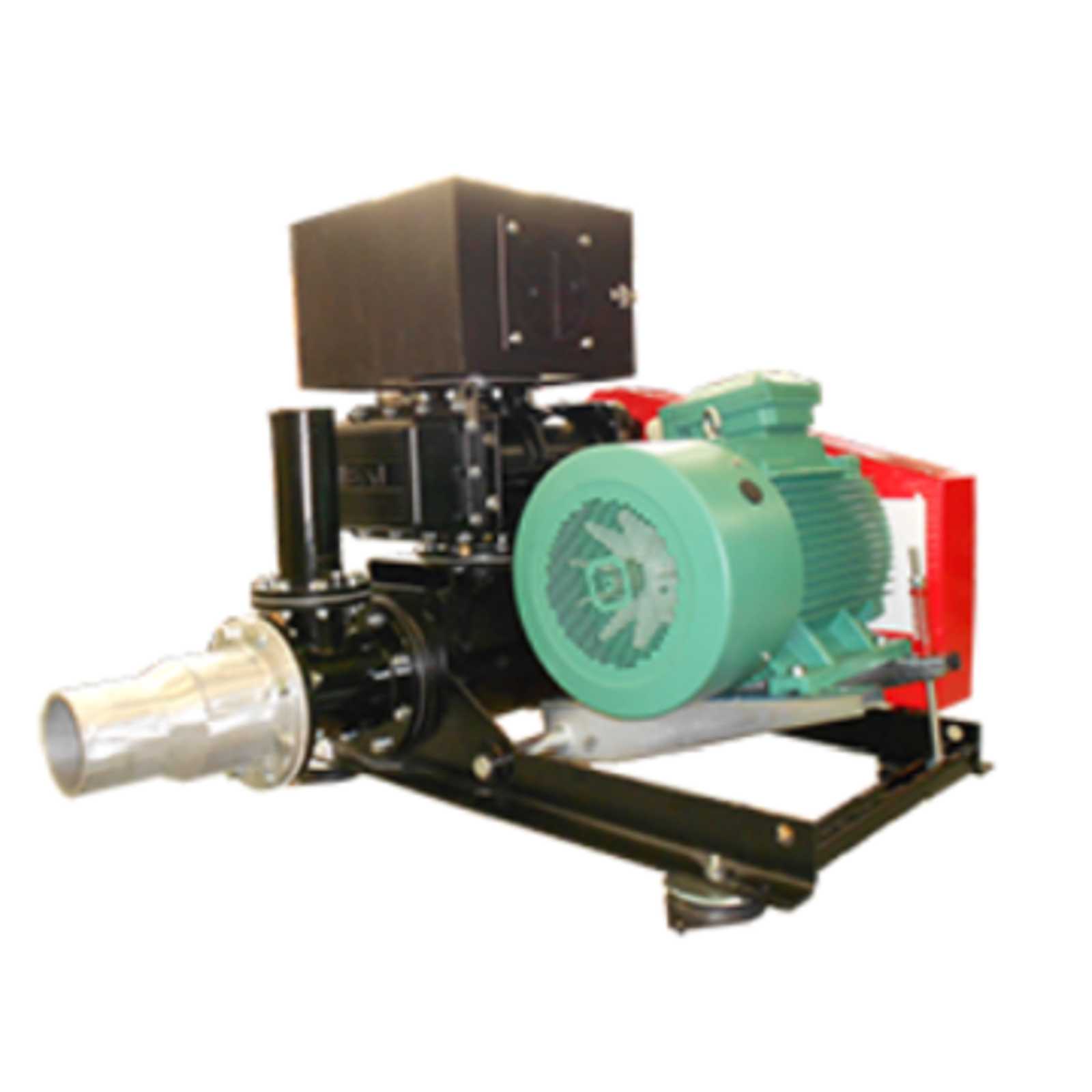

The image portrays a Silentflow positive displacement blower package Hibon, specifically with a NX positive displacment blower, equipped with a motor, V-belt, silencor and check valve.

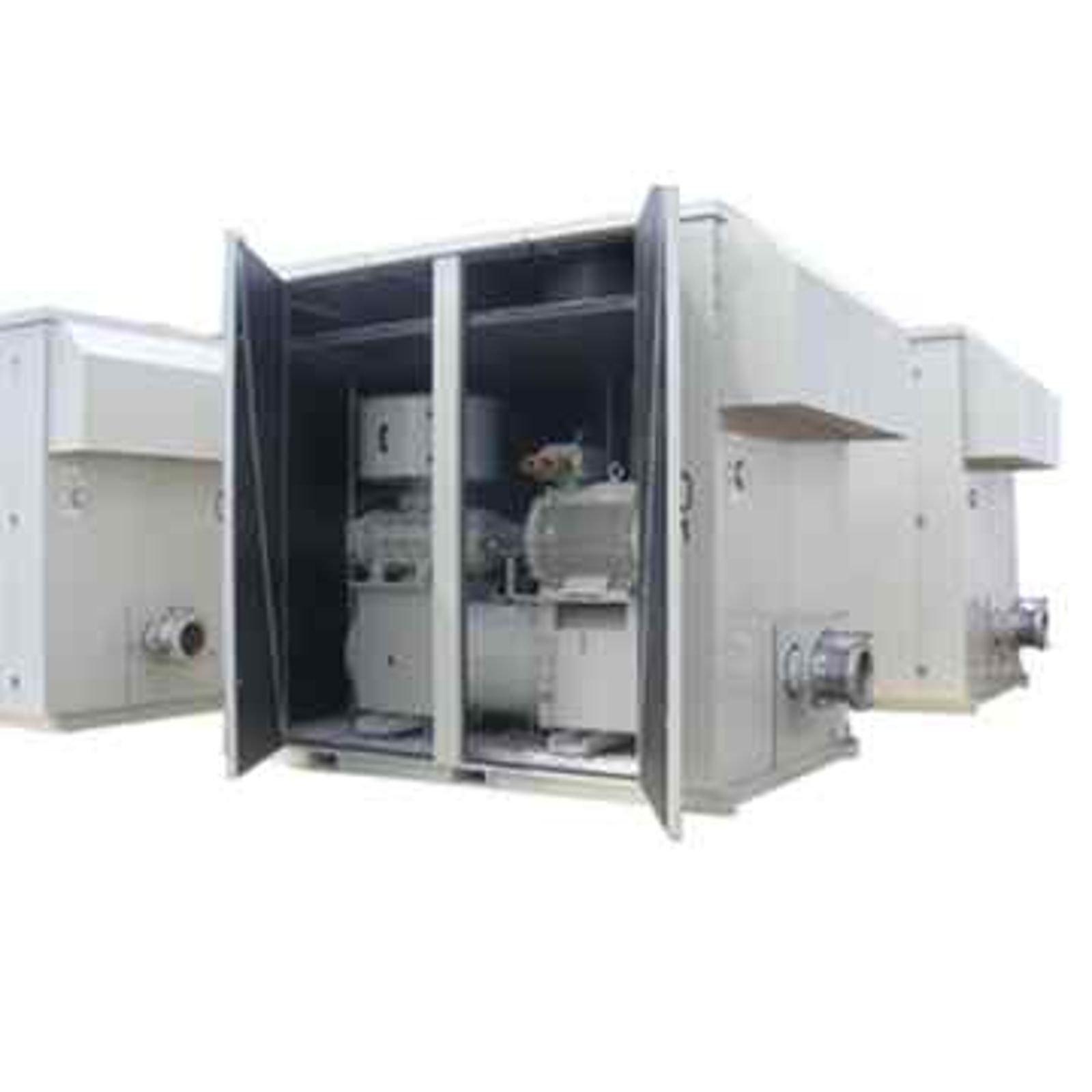

Multiple Silentflow units under acoustic hoods equipped with Hibon positive displacment blowers, to be delivered for gas transfer in the chemical industry.

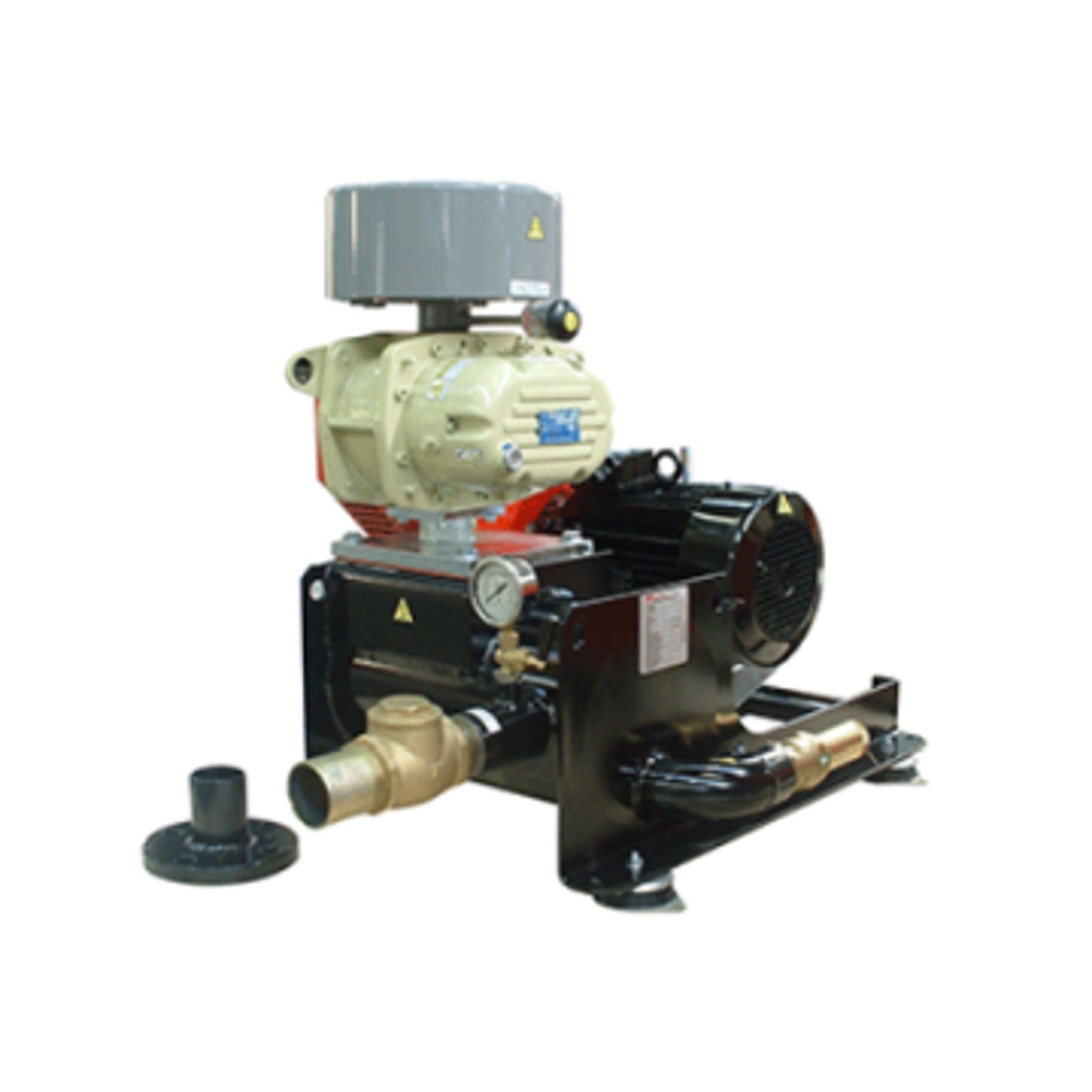

Silentflow two-lobe positive displacement blowers packaged by Hibon, featuring the S2H range and designed for pneumatic conveying and low pressure applications on air or neutral gases.

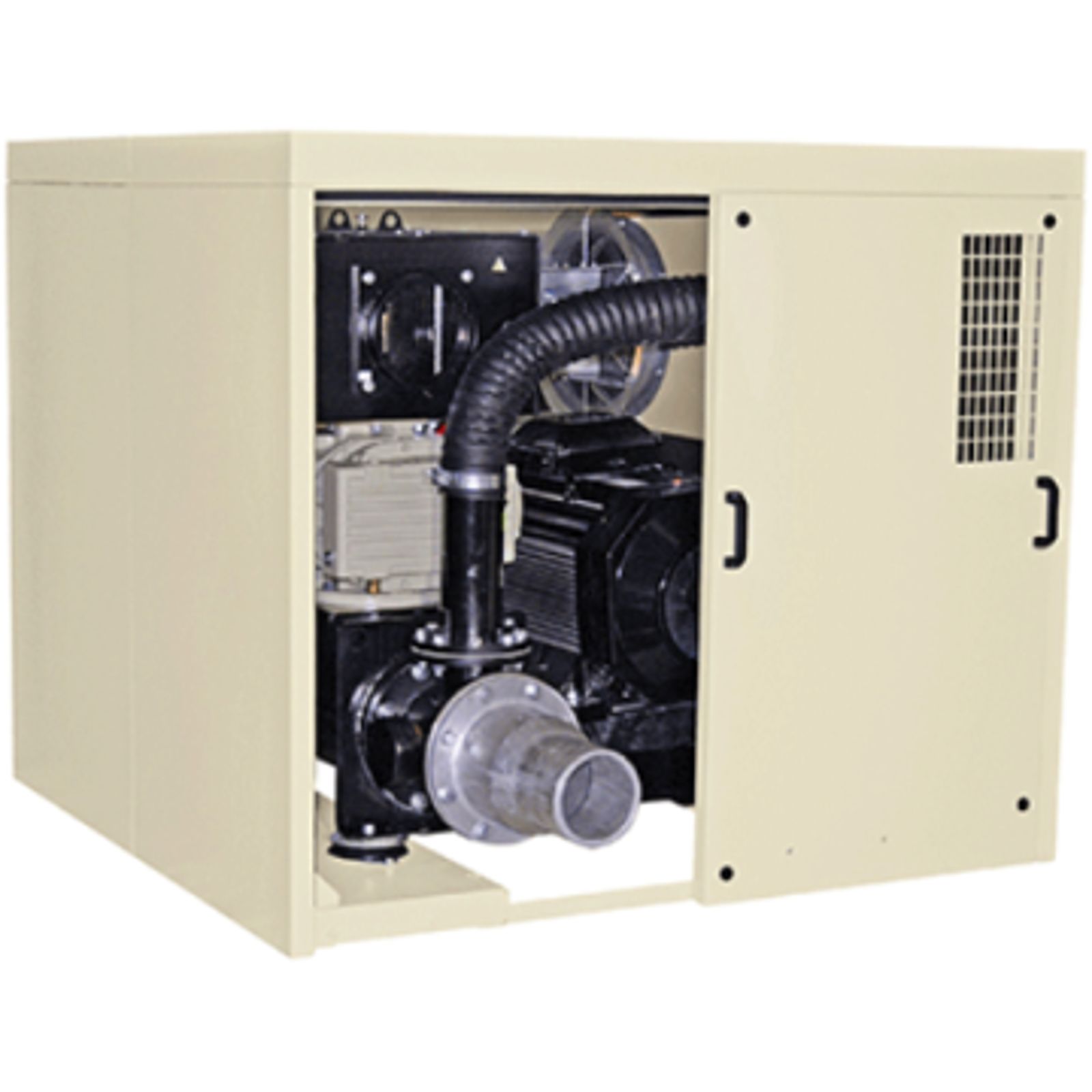

Silentflow Hibon rotary air lobe unit with open cover to reveal the connections of the rotary piston blower on the silencer base, including the motor.

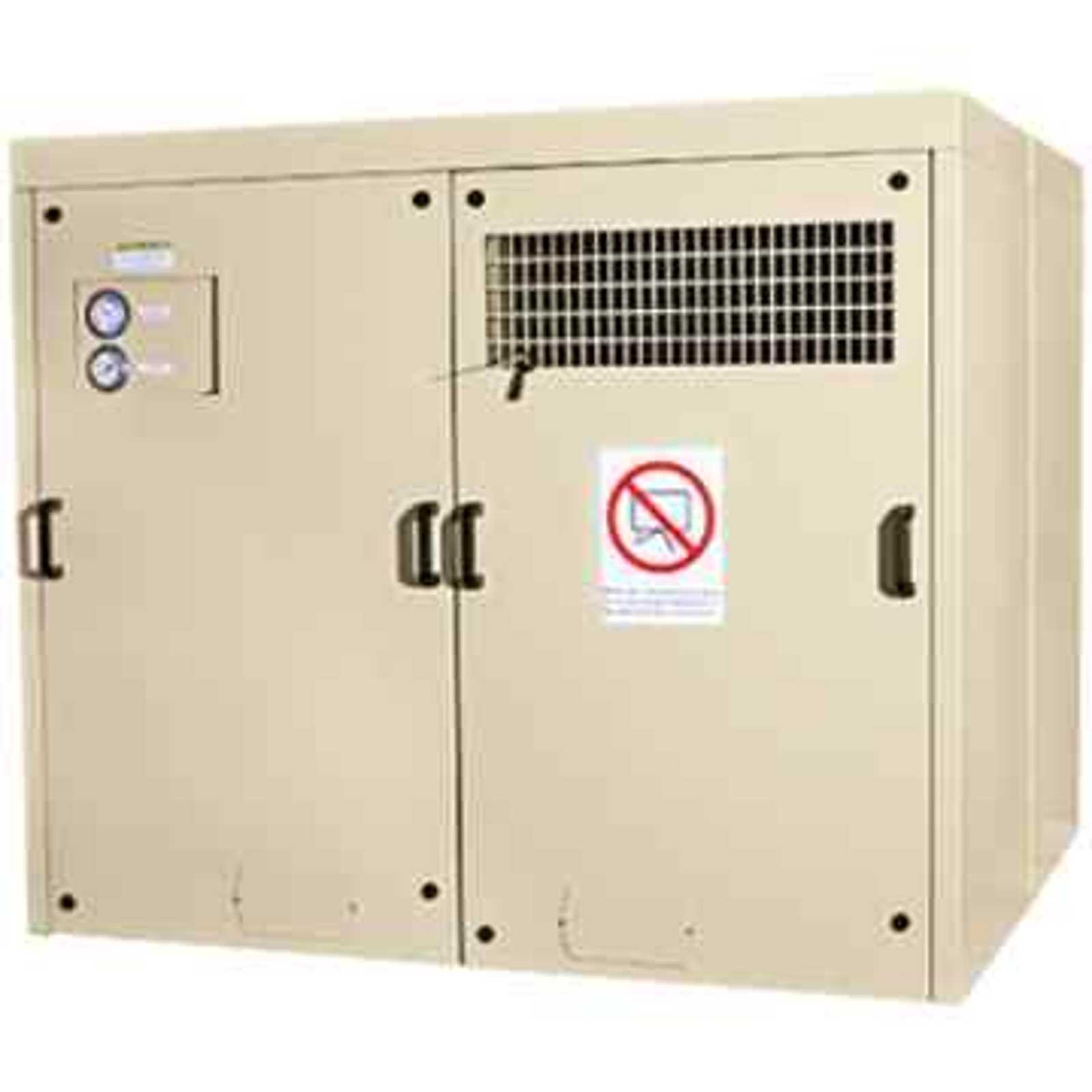

Enclosure package for the Silentflow Hibon with positive displacement blower.

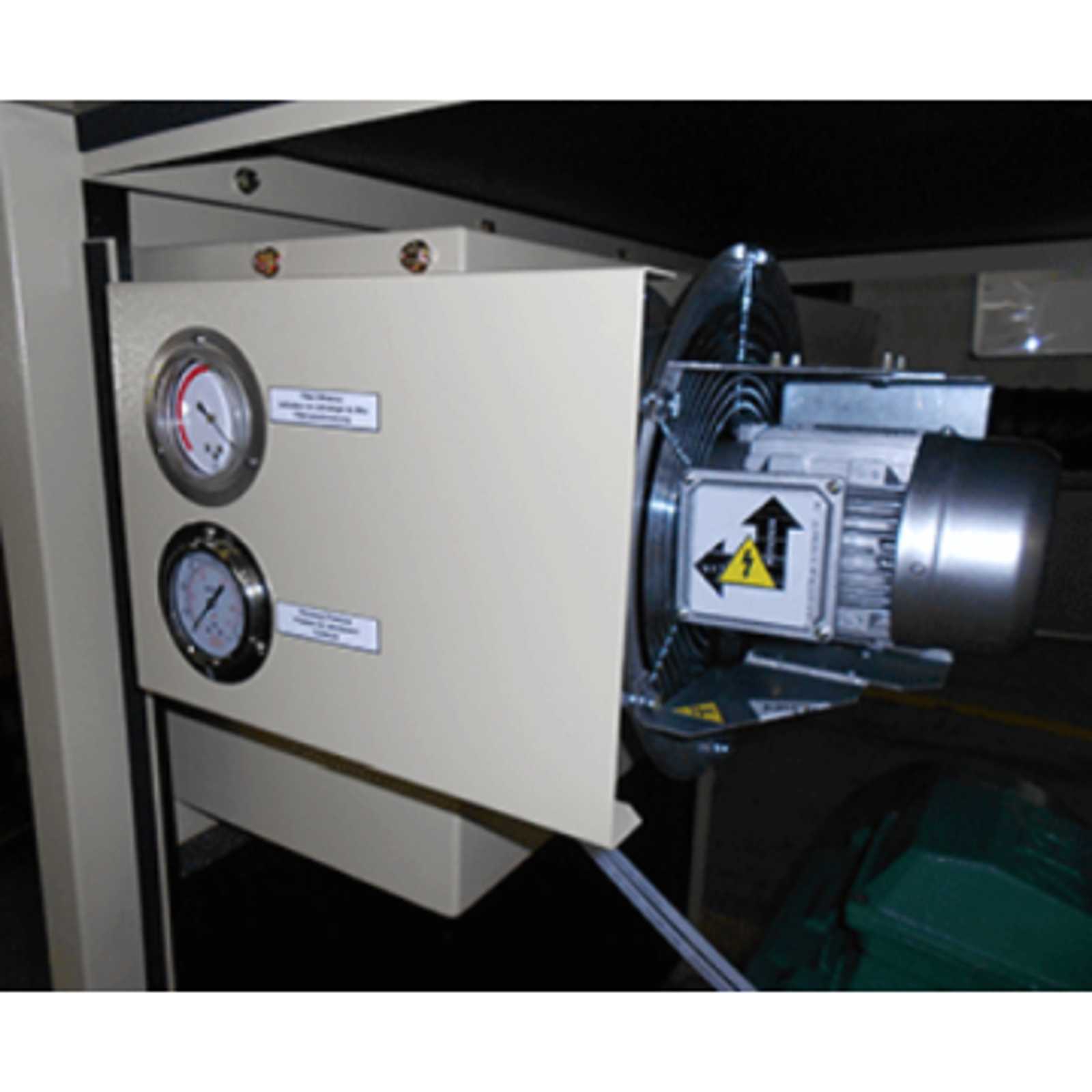

Details of the air extraction fan inside the Silentflow rotary pump package enclosure for low-pressure applications.

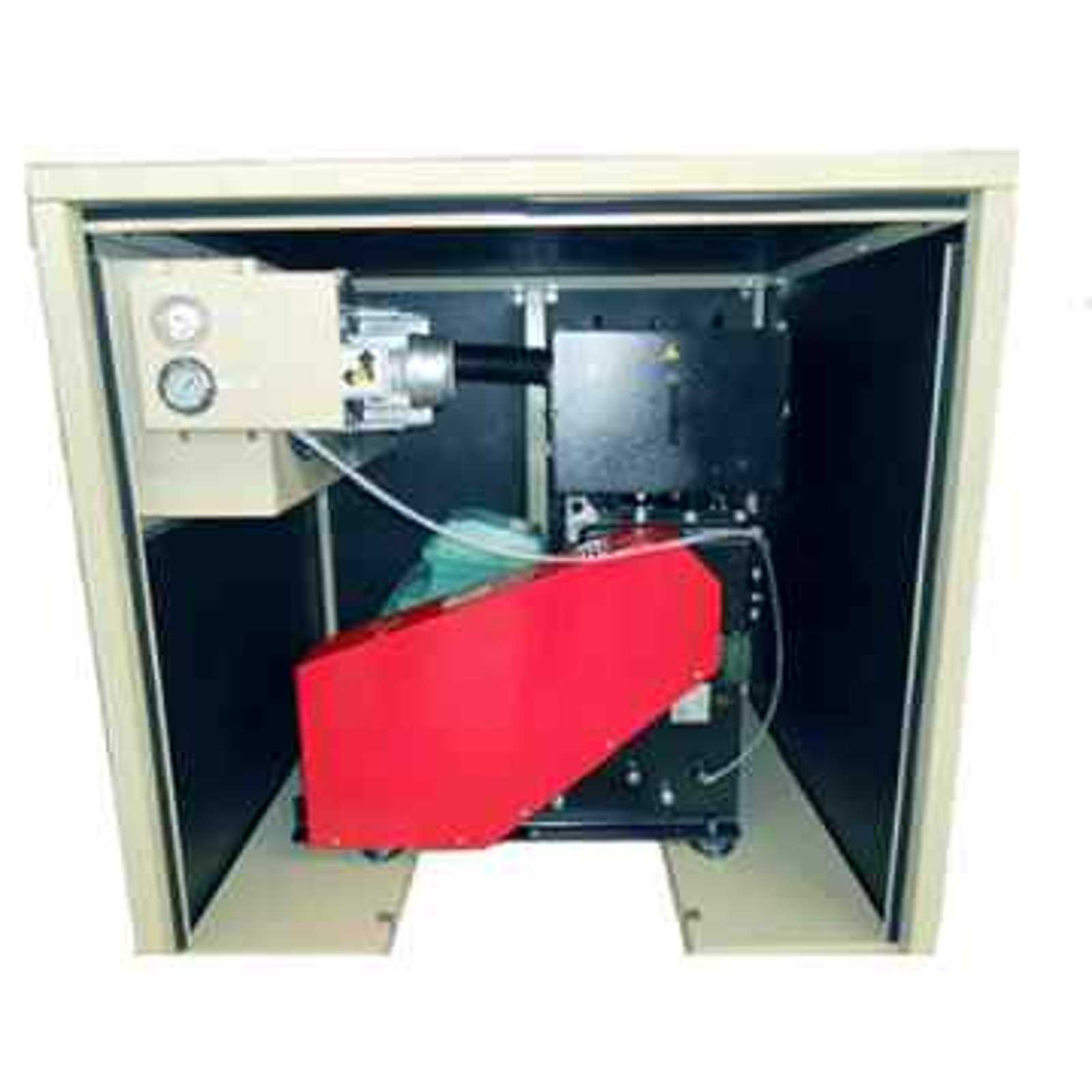

Silentflow three-lobe positive displacement blowers packaged by Hibon, featuring the NX range and designed for pneumatic conveying and low-pressure applications on air and neutral gases.

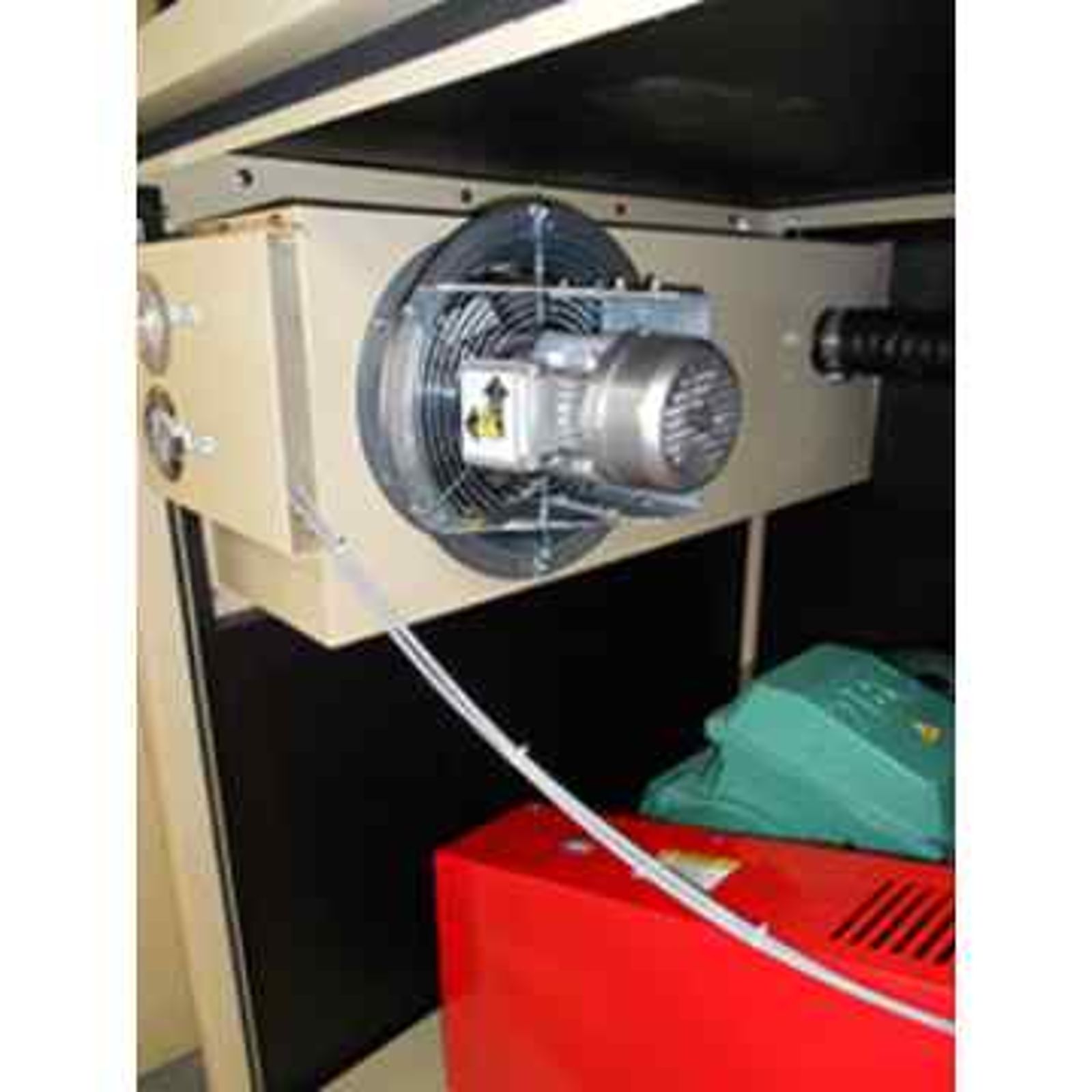

Details of the air extraction fan inside the Hibon silentflow rotary lobe blower package enclosure for low-pressure applications.

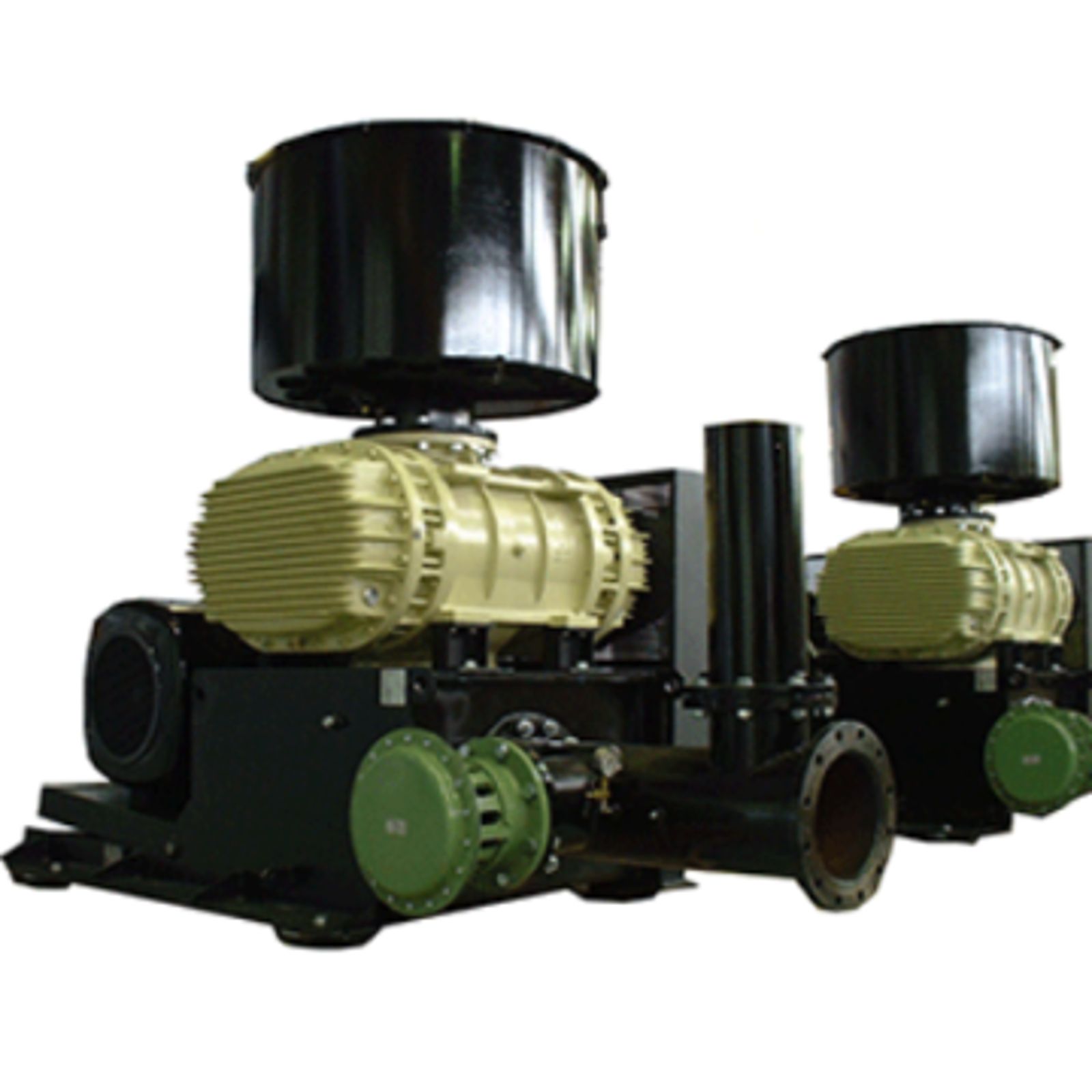

Two assemblies of Hibon rotary lobe blowers with motor, air positive displacment blower, base, inlet and outlet silencer, belts, protective housing, relief valve, and safety valve. These assemblies are utilized for pneumatic conveying for low pressure applications.

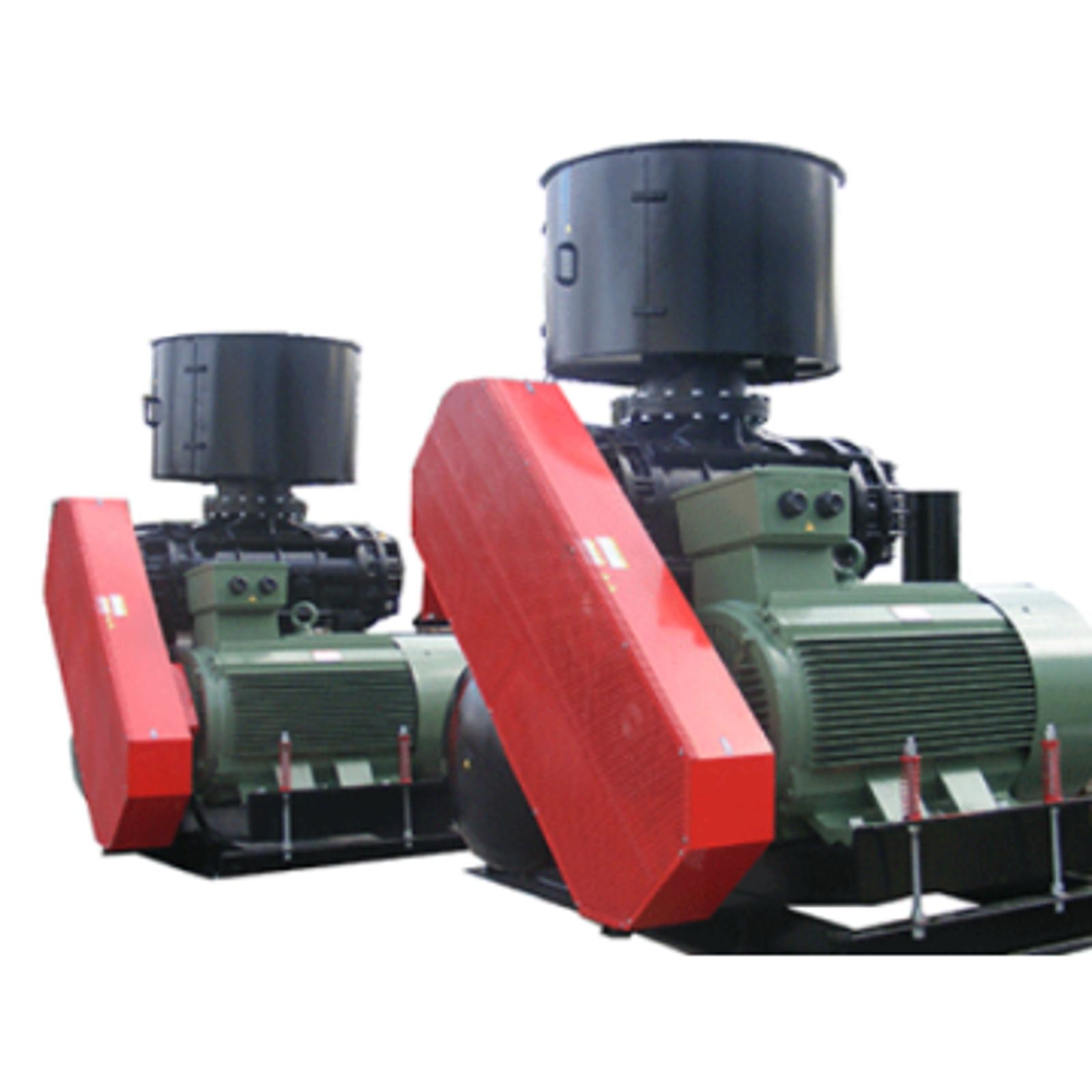

Two Silentflow Three lobe positive displacement blowers units for low pressure application

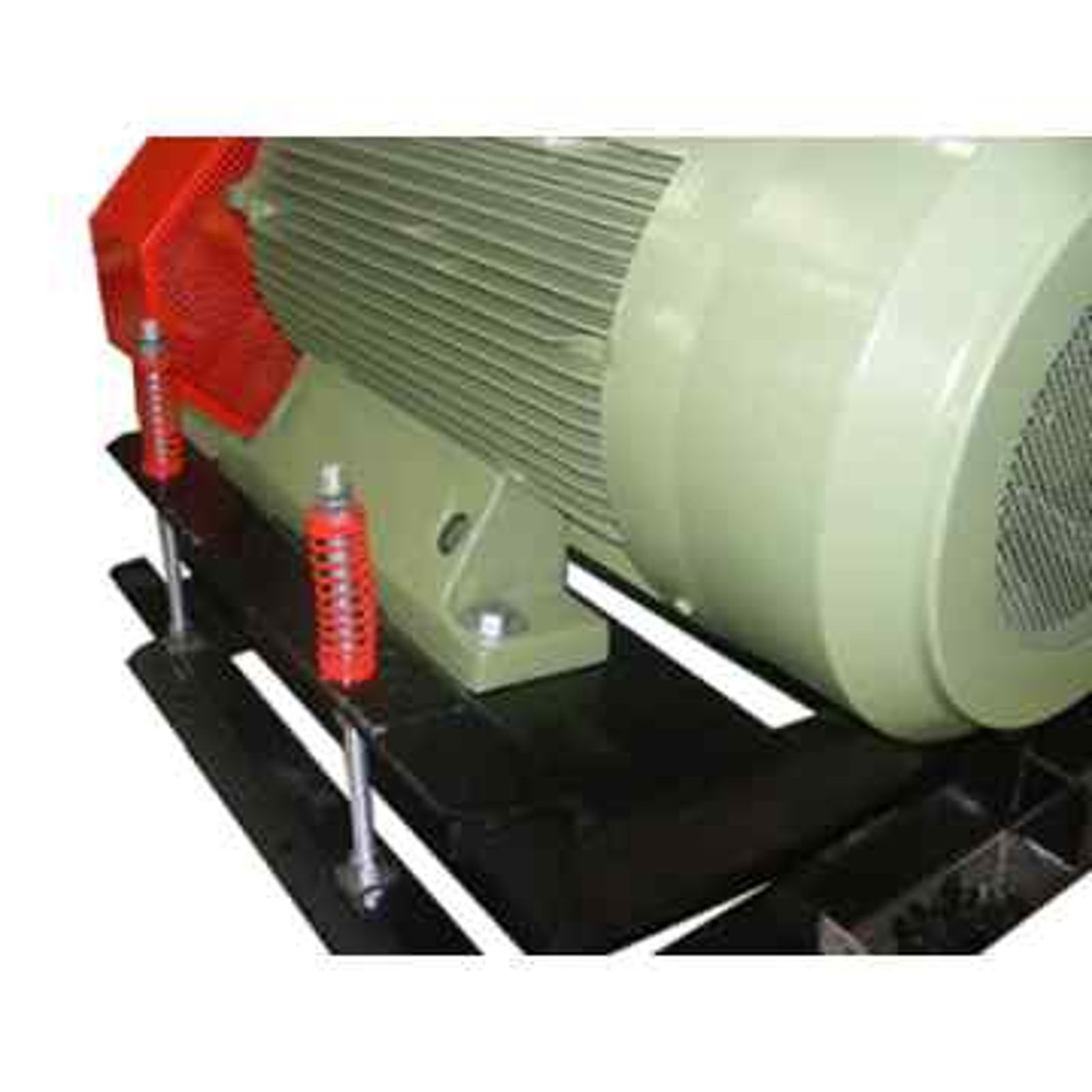

Silentflow Trilobe positive displacement blower package with automatic belt tensioning for low-pressure applications with air and gases.

Blower Package for Pressure and Vacuum

The Silentflow range is a group of rotary lobe blowers designed to circulate air or neutral gases in a non-hazardous environment.
This range incorporates requirements of European Pressure Directive and CE safety regulations.
They can be utilized in pressure or in vacuum applications.

The packages are totally CE compliant and the silencers are EPD compliant
Noise level in accordance with industry standards
High capacity electric fan providing optimum hot-air extraction even under the harhest of environmental conditions.
Automatically adjusted belt tension by the motor weight
"Plug and Play" design, factory assembled package
Easy access to package, easy maintenance
Smallest foot print
The Silentflow blower package can be operated with the acoustic doors open as a drive guard is always included

Model name	Blower	Max Flowm3/h	Delta pressure max. (mbar)	Vacuum max. (mbar)
SF0_2	NX2	450	1050	500
SF0_3.5	NX3	650	1000	500
SF1_5	NX5	1000	1000	500
SF1_8	NX8	1480	1050	500
SF2_12	NX12	2500	1000	500
SF2_18	NX18	3000	1050	500
SF3_26	NX26	4200	1000	500
SF3_43	NX43	4700	1000	500
SF4_43	NX43	5250	1000	500

Silentflow

The SilentFlow range is designed for transferring air or neutral gases in non-hazardous environments, using robust and quiet rotary lobe blowers. Discover Our Brochure
