Troubleshooting in the field needs to be fast, repeatable and easy for operators and technicians to follow.

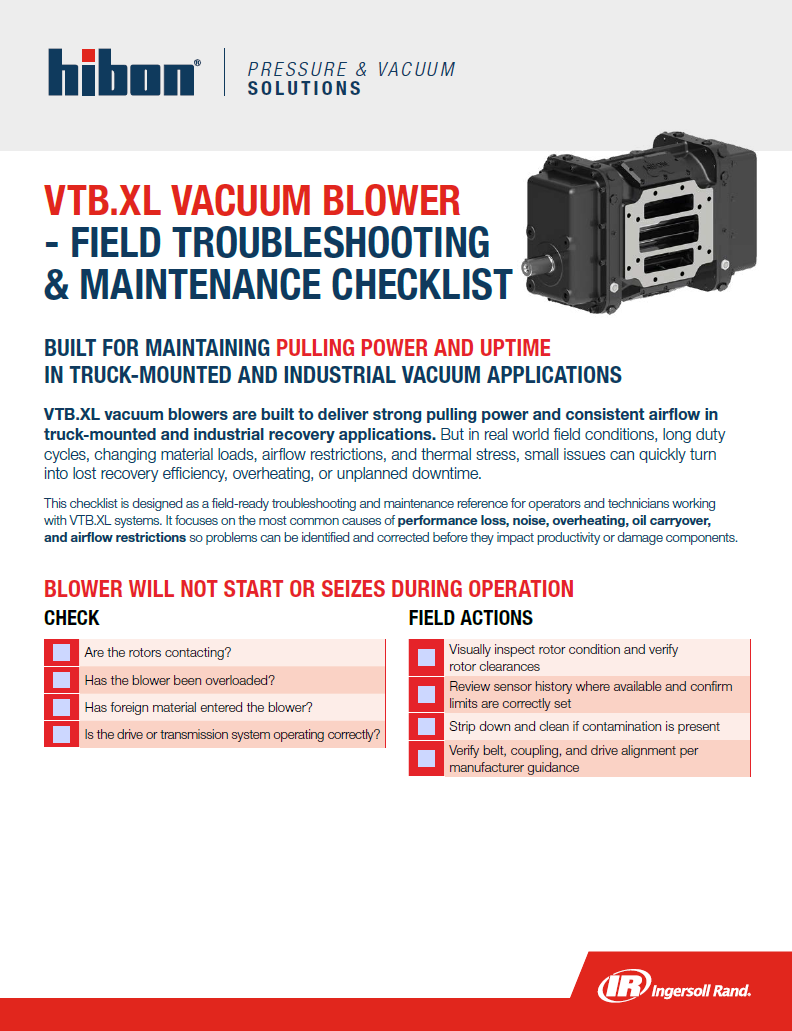

The VTB.XL Vacuum Blower Field Troubleshooting & Maintenance Checklist provides a field-ready reference covering:
Use the checklist during routine inspections or when a change in recovery performance indicates that the system needs attention.
In truck-mounted and industrial vacuum applications, blower performance depends on more than the blower itself. Long operating cycles, changing material loads, airflow restrictions, system operating conditions and thermal stress can all affect recovery performance.
When pulling power drops, airflow decreases, operating temperature rises or the blower begins making unusual noise, identifying the cause early can help prevent a relatively small operating issue from becoming unplanned downtime or component damage.
For Hibon VTB.XL vacuum blower systems, troubleshooting should focus on several key areas: airflow restriction, operating conditions, lubrication, blower clearances, system design and supporting components.
A change in blower performance does not automatically mean the blower has failed.
For example, reduced recovery performance can originate from something as accessible as a blocked suction filter. Overheating can be associated with airflow restriction, differential pressure, oil condition or inadequate cooling. Excessive power consumption can indicate that the blower is being asked to operate outside the conditions the system was designed to support.
A useful troubleshooting process therefore asks two questions:
What changed in blower performance?
Then: What system conditions could create that symptom?
This symptom-first approach can help technicians narrow the investigation before moving toward internal blower inspection or component replacement.
A blower that will not start, or that seizes during operation, requires investigation before operation continues.
For VTB.XL systems, begin by checking four areas:
Visually inspect rotor condition and verify rotor clearances. Contact between internal components requires correction before normal operation resumes.
Where sensor history is available, review previous operating conditions and confirm that applicable limits are correctly set. This can help determine whether an overload condition preceded the problem.
Foreign material entering the blower can interfere with normal operation. If contamination is present, appropriate disassembly and cleaning may be required.
Check the belt, coupling and drive alignment and verify that the drive or transmission system is operating according to manufacturer guidance.
Repeatedly attempting to run a blower that is binding or seizing does not address the underlying cause. Find the condition responsible first.
A change in operating sound can provide an early indication that blower condition has changed.
Two areas identified in VTB.XL troubleshooting are:
Rotor contact or clearance issues and rotor imbalance caused by dust or buildup.
If abnormal noise develops, inspect the rotor clearances and adjust them as required.
Contamination also matters. Dust or other buildup on the rotors can affect balance. Cleaning the rotors and housing can help restore proper condition when buildup is responsible.
Persistent abnormal noise after these checks can indicate that further evaluation is necessary.
An overheating blower should be approached as both a blower and system-level problem.
Several conditions can contribute to excessive temperature:
A restricted suction filter interferes with the intended airflow through the system.
Inspect filter condition and clean or replace restricted filters as required.
This is an especially useful early check because suction restriction also appears elsewhere in VTB.XL troubleshooting as a potential contributor to reduced recovery performance and excessive power consumption.
Check whether system operation aligns with the blower’s intended operating limits.
If differential pressure is excessive, the operating condition itself needs to be addressed rather than simply treating the resulting temperature increase.
Verify that the oil level and specification are correct.
Lubrication should be maintained according to the applicable maintenance requirements rather than assuming additional oil provides additional protection.
Internal clearance problems can also contribute to abnormal operating conditions.
If clearance issues are suspected, inspect the blower condition and pursue the appropriate service-level evaluation.
For enclosed systems, cooling airflow around the blower is another important consideration.
Check that enclosure vents are unobstructed, cooling fans operate correctly and sufficient airflow clearance is maintained around the blower.
Together, these checks demonstrate why overheating should not automatically be diagnosed as an internal blower failure.
Oil appearing where it should not can sometimes have a straightforward cause.
For the VTB.XL, begin by checking whether the oil level exceeds the recommended range.
If the blower has been overfilled, drain the oil to the correct level according to the applicable maintenance specifications.
If correcting the oil level does not resolve the condition, further investigation may be necessary.
A truck that suddenly takes longer to recover material may be experiencing an airflow problem rather than simply a lack of blower capacity.
VTB.XL troubleshooting identifies three primary areas to investigate:
Start with the suction filter.
A clogged filter restricts airflow through the system and should be replaced when required.
If the airflow path is clear but performance remains below normal, inspect blower condition for signs of internal wear or damage.
Not every performance problem is a maintenance problem.
If the system is being asked to operate beyond the conditions for which it was designed, cleaning filters or servicing components will not correct the underlying mismatch.
In that situation, the system design and blower selection should be reevaluated against the application’s required operating point.
A blower requiring more power than expected can provide another indication that the operating system needs attention.
Check:
First verify that airflow and pressure remain within the intended design limits.
Then inspect the airflow path for restrictions and remove them where found.
If operating requirements fall outside the blower’s intended capability, the appropriate response may involve adjusting the system or selecting a blower better suited to the required operating point.
This is an important distinction: higher power consumption may be a symptom of how the system is operating, not simply a problem with the blower itself.
If the blower rotates backward after shutdown, inspect the non-return valve. A faulty non-return valve may require repair or replacement.
This is another reason to troubleshoot the complete vacuum system rather than focusing exclusively on the blower. Supporting components can directly affect what operators observe at the blower.
Many vacuum blower problems can be grouped into three categories.
Maintenance conditions include clogged filters, incorrect oil level, contamination and obstructed cooling airflow.
Equipment conditions can include internal wear, damage or clearance problems requiring further inspection.
Application or system conditions involve operating points, pressure, airflow requirements or system designs that do not properly match the blower’s intended duty.
Separating these categories can help avoid replacing components when the underlying problem actually exists elsewhere in the system.
One condition appears repeatedly throughout the VTB.XL troubleshooting process: airflow restriction.
A restricted suction filter is associated with multiple symptoms addressed by the checklist, including:
That makes filter condition a practical early checkpoint when diagnosing a VTB.XL system experiencing more than one symptom.
If recovery slows while temperature or power demand also begins increasing, checking the airflow path can help technicians investigate a potential common cause before progressing to more complex diagnostics.
If basic troubleshooting does not identify or correct the problem, continuing to operate the blower may not be the appropriate next step.
Persistent problems can indicate:
Application mismatch, system design limitations or internal blower wear.
Those conditions may require a more detailed system or service evaluation.
Check the suction filter for blockage or restriction. If the filter is clear and airflow remains low, blower condition and whether the system is operating within its intended application should be evaluated.
