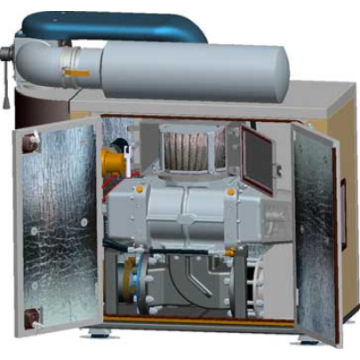

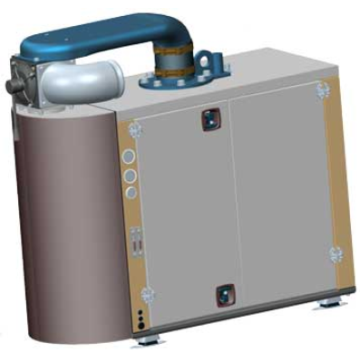

VTB 820.vs Truck Blower Package

Truck Air Injection Blower Package

The package is equipped with a positive displacement blower (VTB 820), capable of pulling a vacuum up to 28” Hg with a flow rate up to 1,661 CFM.

It is well known and proven for its durable construction and un-matched performance.

The package solution is a “plug-n-play” system poviding for an easy installation on trucks for sewer treatment.

Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

  • Unique air injection system of the VTB 820.XL blowers
  • Plug-n-Play solution ready to fit
  • Reduced size
  • External oil level sight glasses
  • Dual vacuum gauges
  • Hibon 4-way valve positioned for ease operation
  • Internal pressure relief valve
  • Cast inlet manifold
  • Full acoustic enclosure

Specifications

Volume displacement at maximum speed: 1,661 CFM

Nominal Dimensions:

  • Heigh : 55-1/8"
  • Lengt : 60-9/16"
  • Width: 26-11/16"
  • Weight: 2,000 lbs
